I get nerdsniped easily. So when someone on Hacker News mentioned trying to view a 417-megapixel Andromeda galaxy panorama, I sprung into action.

More specifically, I:

  1. Found a JavaScript library for rendering zoomable images on the web (OpenSeadragon) that looked promising
  2. Converted the 417-megapixel image into a Deep Zoom image, which is a .dzi file and some nested directories of images
  3. Wrote a bare minimum index.html to serve as the entrypoint
  4. Put it on a VM on GCE, behind Caddy for TLS.

I confirmed it worked, replied to the thread on HN, made a note to turn off the VM at some point, and promptly forgot all about it.

Well, until my GCP bill reminded me about it yesterday.

Making it Cheaper

While I could have just shut off the VM and called it a day, I also didn't want to contribute to link rot on the web. So I opted to just move it, in the off-chance others stumble across the comment.

But where to move it?

Everyone and their cousin has a static site platform, so there are plenty of options. Normally, I wouldn't think twice about tossing a static site on my little basement server, but interacting with the zoomable image can generate 10s of megabytes of network traffic. I've got a symmetric 1 Gbps home link, so it'd probably be fine, but I don't want to make it too easy for strangers to accidentally DoS my home while exploring the cosmos.

So I went with with Cloudflare R2. Honestly, I don't remember exactly why. Probably because of lack of egress fees, and the general simplicity of the service. Cloudflare Pages probably makes more sense for most use cases, but I didn't care about Git integration or previews, I really just wanted the dumbest possible thing.

The Migration

To actually get it up and running, I:

  1. Created an R2 bucket (docs)
  2. Created an API token (docs)
  3. Installed the aws CLI on the VM
    • Why the AWS CLI? Because R2 exposes an S3-compatible interface
  4. Authenticated the CLI with aws configure --profile cloudflare
    • And when prompted, entered all the authentication information from step 2.
  5. Copied all the static files (index.html and zoomable images files) from the VM to the R2 bucket with aws s3 sync
    • See the appendix for the full command.
  6. Added a custom domain on the R2 bucket.
    • This only works if DNS for the domain is managed by Cloudflare
    • If there's already a DNS configuration for the domain in question, Cloudflare will helpfully remove the old record when adding the new one.

…and we're done! Wait a sec for the TLS certs to be generated, and let's have a look at our freshly migrated site:

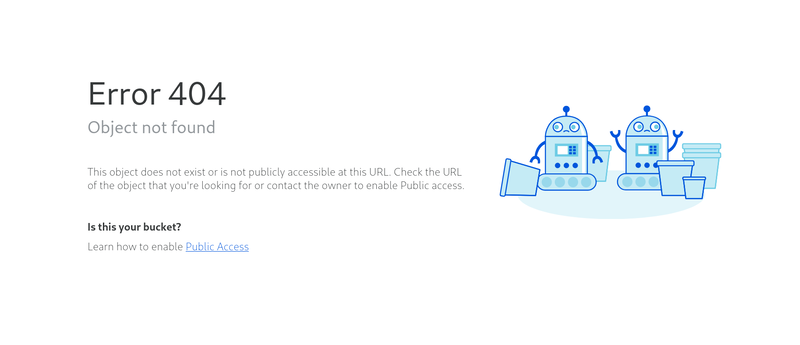

A Cloudflare error page showing 'Error 404' and 'Object not found', with some confused robots tipping over buckets

That's...not right.

The issue here is that I asked for the "dumbest possible thing", and I got it. R2 literally just serves the file at the given path, and there's no file at /[1], so we get a 404 Not Found.

The solution is to add a URL rewrite rule. In the dashboard, that looks something like this:

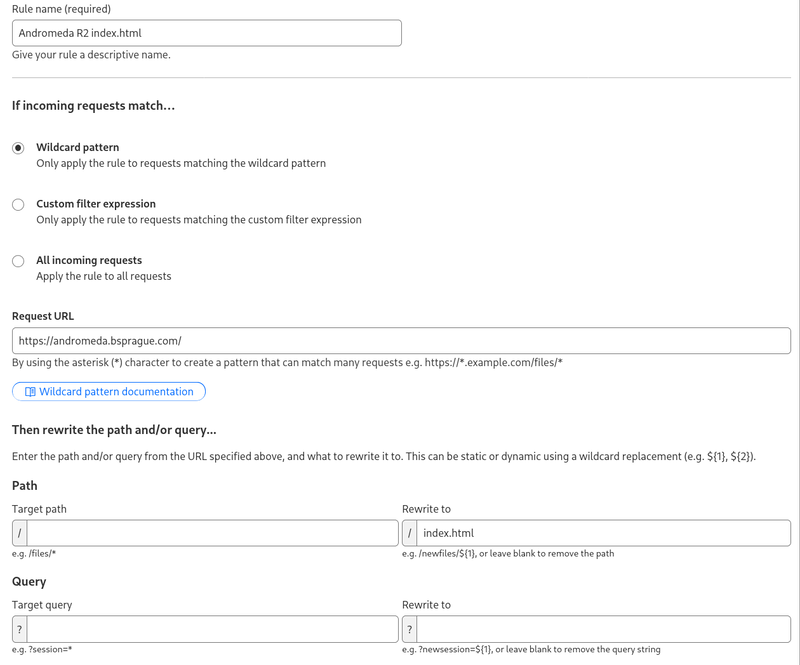

The Cloudflare dashboard showing the URL Rewrite rule configuration page

This is basically saying, "Hey, when you receive a request at /, load the R2 object stored at /index.html"

And now we're actually done! Loading the site presents you with an unstyled, poorly margin-ed, zoomable image of the Andromeda galaxy:

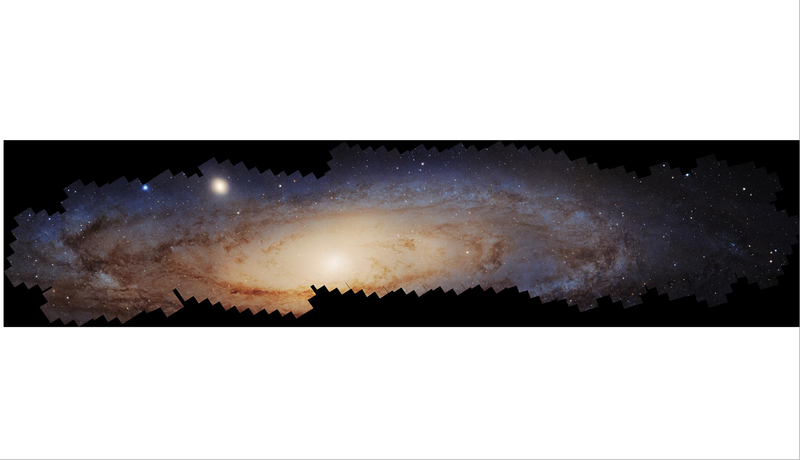

A screenshot of the deployed website, with the Andromeda galaxy in the center

It's a bit rough, sure, but the whole raison d'être was to allow folks to explore an otherwise less-accessible image. And at that, it succeeds.

Appendix

Some brief notes about how I actually created the zoomable image + integrated with OpenSeadragon.

Downloading and converting the image

# Download the full-resolution image from NASA
wget https://assets.science.nasa.gov/content/dam/science/missions/hubble/galaxies/andromeda/Hubble_M31Mosaic_2025_42208x9870_STScI-01JGY8MZB6RAYKZ1V4CHGN37Q6.jpg

# Install libvips: https://github.com/libvips/libvips
sudo apt-get install libvips-dev

# Use libvips to create the Deep Zoom image: https://www.libvips.org/API/current/Making-image-pyramids.html
vips dzsave Hubble_M31Mosaic_2025_42208x9870_STScI-01JGY8MZB6RAYKZ1V4CHGN37Q6.jpg hubble

A Simple index.html to wrap OpenSeadragon

<!DOCTYPE html>
<html lang="en"  style="width: 100%; height: 100%;">
  <head>
    <meta charset="utf-8" />
    <meta http-equiv="x-ua-compatible" content="ie=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />

    <title>Andromeda 417 Megapixel Image</title>
  </head>

  <body style="width: 100%; height: 100%;">
    <div id="openseadragon1" style="width: 100%; height: 100%;"></div>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/openseadragon/5.0.1/openseadragon.min.js"></script>
    <script type="text/javascript">
        var viewer = OpenSeadragon({
            id: "openseadragon1",
            prefixUrl: "/",
            tileSources: "/hubble.dzi"
        });
    </script>
  </body>
</html>

I usually don't trust CDNs for serving JS[2], but this is a low-effort one-off project and the internet is generally full of far worse.

Copying static files from GCE VM -> R2 Bucket

aws s3 sync \
  /usr/share/caddy \
  s3://$R2_BUCKET_NAME/ \
  --endpoint-url https://$CF_ACCOUNT_ID.r2.cloudflarestorage.com \
  --profile cloudflare

  1. I'm not even sure that there could be a file that maps to the root path. ↩

  2. At the very least, I should include a Subresource Integrity attribute to thwart supply chain attacks. ↩
